HP G5 USB-C Docking Station 5TW10AA

HP G5 USB-C Docking Station 5TW10AA

Connect your USB-C®-enabled laptop to your displays, accessories, and wired network with the versatile, elegant, and space-saving HP USB-C® Dock G5.

Features

Universal docking for today’s notebooks

Get to work with a single cable from your USB-C™-enabled notebook to your displays, devices, and wired network with the versatile, elegant, and space-saving HP USB-C Dock G5. The dock is compatible with HP notebooks, MacBook® computers, and other notebooks.

Compatible with your mixed PC environment

Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-C™- and Thunderbolt™-enabled notebooks.

Single-cable solution

Add your accessories and up to three displays to the dock. Then simply connect it to your notebook through a single USB-CTM cable to access your devices and charge your PC.

Easily manage your commercial HP fleet

Help IT secure and remotely manage your deployed commercial HP notebooks and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.

Small footprint

Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.

Electronic asset management for your docks

Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.

Efficient firmware updates

Updating your dock fleet has never been easier. IT can save time by pushing dock firmware updates to managed notebooks for later installation on the dock, even when they’re disconnected from each other.

We test so you can rest.

Rigorous testing helps assure dock compatibility across HP notebooks and Apple®, Dell, and Lenovo notebooks with USB-C™ charging ports.

Specifications

Product: HP G5 USB-C Docking Station

Power supply: Power to system: Up to 100W via USB-C Power to host (USB-C PD): 5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX

Security management: 1 Lock slot (side, lock is sold separately)

Colour: Black

Compatibility: Compatible with HP laptops, MacBook computers, and other laptops.

Compatible operating systems: Windows 10; Windows 11; macOS; Chrome OS

Minimum system requirements: USB Type-C (USB Power Delivery, Alt Mode DisplayPort)

Dimensions (W X D X H): 12.2 x 12.2 x 4.5 cm

Weight: 0.75 kg

Warranty: 1-year limited

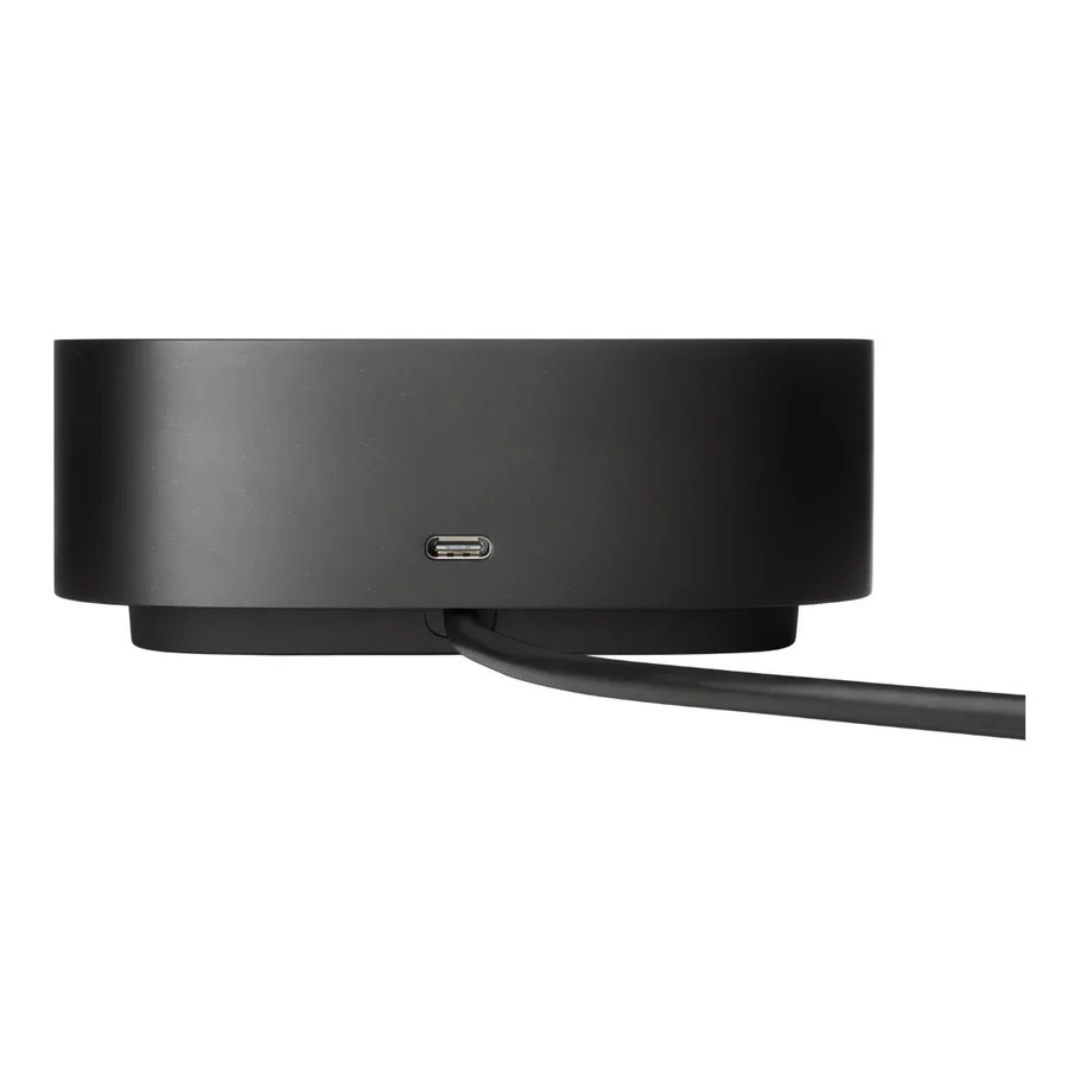

External Ports Front

• 1x USB-C port with data and power out (15W)
• 1x USB-C cable to connect to host system Side
• 2x USB 3.0 charging ports

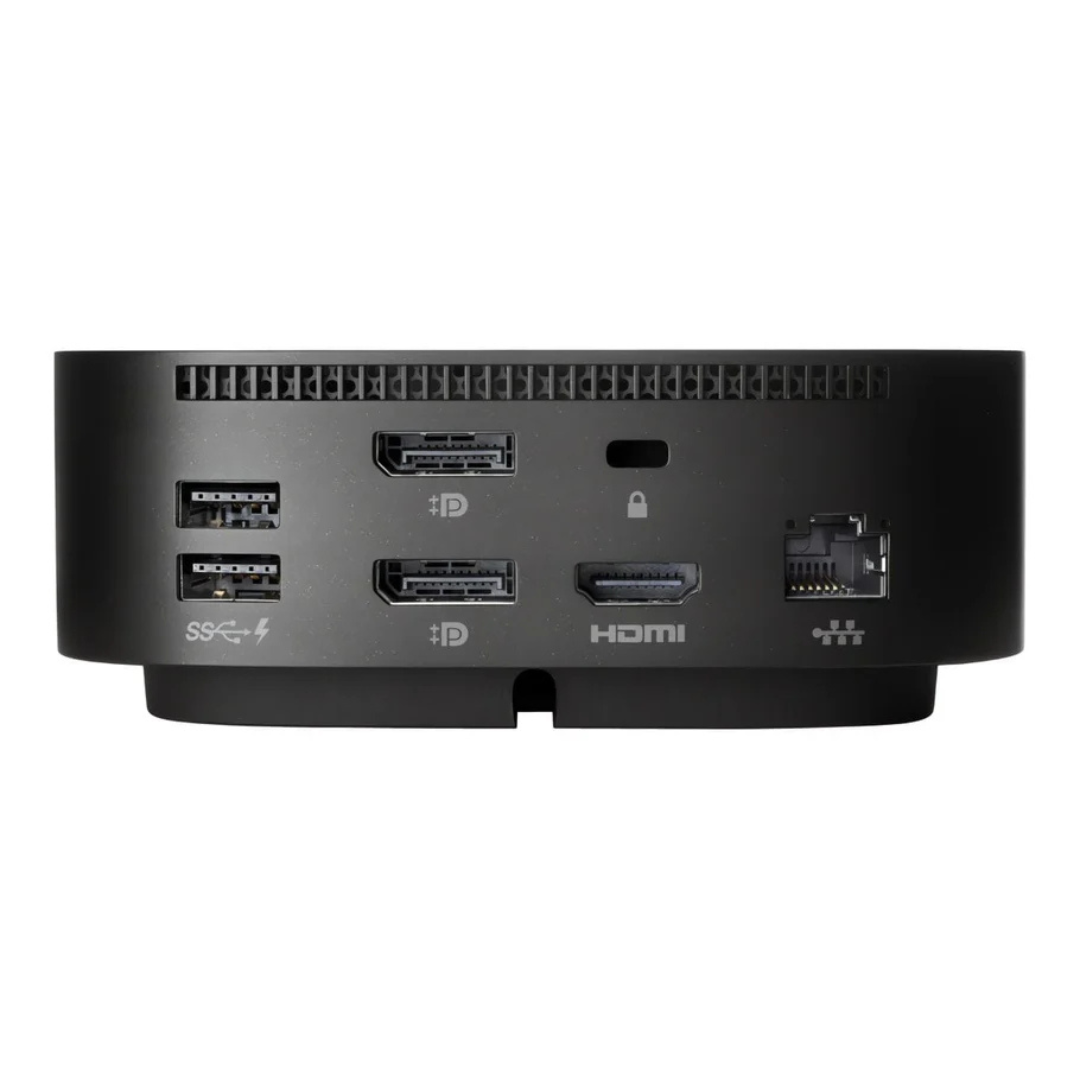

• 1x combo audio jack Back
• 2x USB 3.0 charging ports
• 2x DisplayPort ports
• 1x RJ45 port
• 1x HDMI 2.0 port
• 1x Standard lock slot

In the Box

• HP USB-C Dock G5
• AC Adapter
• AC Power cord
• Product notices
• Warranty
• Quick Start guide
